Aeroway
Zoom Level Applied: 10~19

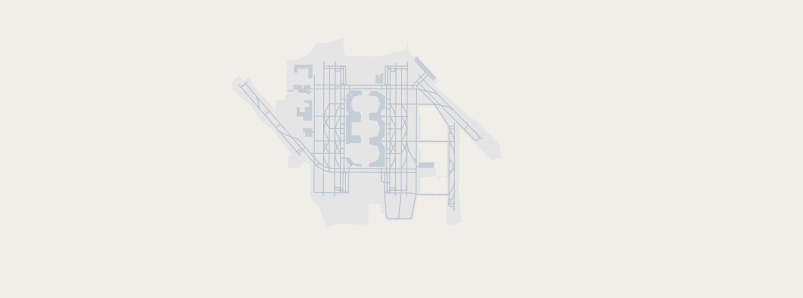

The Aeroway polygons based on OpenStreetMap aeroways, containing the aerodrome, heliport, runway, helipad, taxiway and apron.All of them are consisted by two geometry types: line and polygon.
Columns
geometry field
geometry type : line, polygon
class
The main field used for styling the aeroway is class.
| Value | |
|---|---|
'aerodrome' | (line, polygon) The main area details of the airport. |
'helipad' | (line, polygon) The area for helicopters. |
'runway' | (line, polygon) A rectangular area for airplane to land and takeoff. |
'taxiway' | (line, polygon) A path connecting runways with terminals, hangars and other facilities on the airport. |
'apron' | (line, polygon) An area for plane to park, loaded, unloaded, refueled or boarded. |
Data Download Source
| Zoom Level | Possible Values | Data Download Source |
|---|---|---|
| 10 | aerodrome(line and polygon) | aeroway = 'aerodrome' (line and polygon) |
| 11 ~ 19 | aerodrome, helipad, runway , taxiway, apron (line and polygon) | aeroway IN ('aerodrome', 'runway', 'taxiway','helipad', 'apron') (line and polygon) |
