Map Suite Quickstart Guide For Android

The Map Suite Mobile for Android illustrated Quickstart Guide will guide you through the process of creating a sample application and will help you become familiar with Map Suite. This edition of the Quickstart Guide supports Map Suite Mobile for Android 10.0.0 and higher and will show you how to create an Android application using Map Suite Mobile for Android.

If you want to build an iOS application using the standard Map Suite Mobile for iOS product, please see the iOS QuickStart Guide instead.

Welcome to Map Suite™ from ThinkGeo, a full-featured mapping control that makes it easy for any Microsoft .NET developer to add mapping functionality to a Microsoft .NET application quickly and efficiently. Using the intuitive object model, even developers inexperienced with Geographic Information Systems (GIS) can have fully functional maps working in minutes.

This guide will help you quickly get started building your own spatially aware applications. Like any new software, there will be some learning along the way.

How do we begin taking advantage of the power of Map Suite? The best way to learn is to make a sample application with it.

Download the Sample

Setting up the Environment

Please follow our Map Suite Mobile for Android Installation Guide for Xamarin Android development environment.

Let's start by creating a new Android project in Microsoft Visual Studio (2012 or newer) named Quickstart(see Figure 1). We can create the project with .NET Framework 4.5.

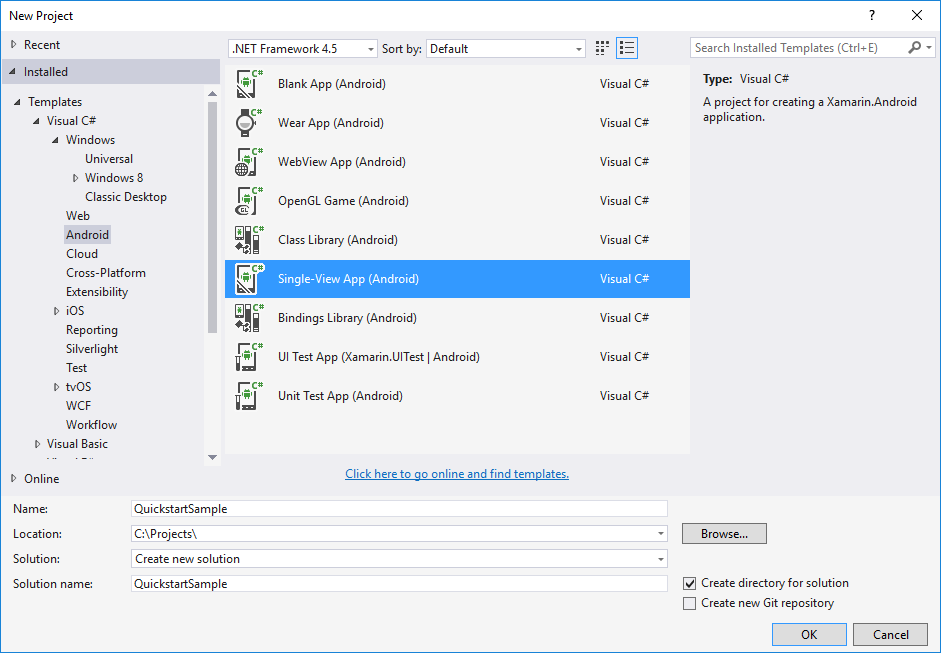

Figure 1. Creating a new project in the Visual Studio IDE.

The project QuickstartSample is created in a new solution called QuickstartSample. The wizard creates a single Android Application. Choose Android version (4.0.3 or higher) for the project:

Now we are going to install MapSuite Mobile for iOS NuGet package. Let's open NuGet Manager dialog and install following three NuGet packages.


Figure 2. Open NuGet Manager UI in the Visual Studio IDE.

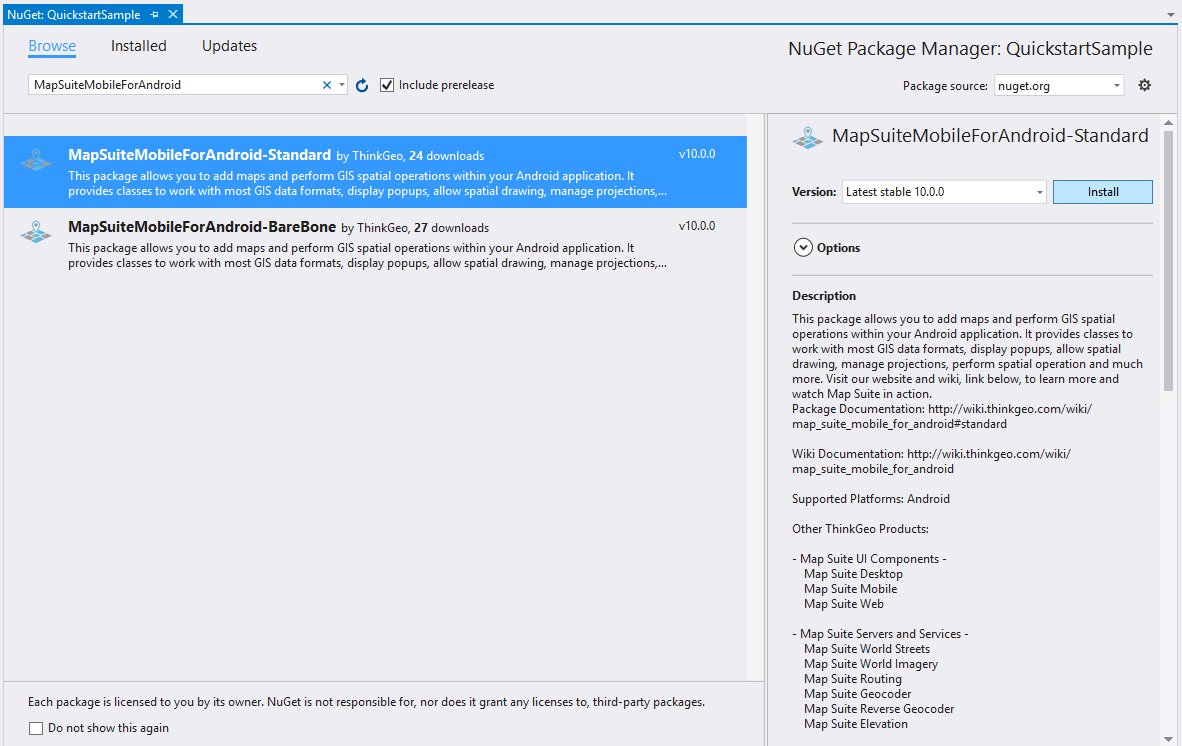

Figure 3. Install Android Package.

Next we need to prepare our map data. There are two ways to copy data to phone or tablet. The first way is using android ddms tool. We can find the tool under “[android-sdk]\tools\ddms.bat”.

Open the tool, and use File Explorer to add data.


Create a new folder under sdcard named “Android.Sample”.


Next, create a new folder named “GetStarted” under “Android.Sample”, and push these files onto Device:


The second way to copy data to phone or tablet is by using code. Create a new folder named AppData under “Assets”, then add the map data to it. Make sure the resources’ build action is AndroidAsset.

Then we can use code to copy data to a special location. There are two kinds of data paths:

One is under our application, like “/data/data/QuickstartSample.QuickstartSample/AppData/”.

The other one is under the sdcard, like “/mnt/sdcard/Android.Sample/GetStarted/”.

protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    SetContentView(Resource.Layout.Main);

    // Copy the required Shapefiles to Device.
    string targetDirectory = (@"/mnt/sdcard/Android.Sample/GetStarted/");
    CopySampleData(targetDirectory);
}

This method will copy data to the target path, if the folder does not exist.

private void CopySampleData(string targetDirectory)
{
	if (!Directory.Exists(targetDirectory))
	{
		Directory.CreateDirectory(targetDirectory);
		foreach (string filename in Assets.List("AppData"))
		{
			Stream stream = Assets.Open("AppData/" + filename);
			FileStream fileStream = File.Create(Path.Combine(targetDirectory, filename));
			stream.CopyTo(fileStream);
			fileStream.Close();
			stream.Close();
		}
	}
}

Adding the Map View to our App

Open the Resources\layout\Main.axml file. Remove the default button node, and insert MapView node in the axml.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent">
    <ThinkGeo.MapSuite.Android.MapView
        android:id="@+id/MapView"
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"/>
</LinearLayout>

Now we have our “ThinkGeo.MapSuite.Android.dll” and “ThinkGeo.MapSuite.dll” referenced and a MapView added.

Map Suite Android "Quickstart Sample"

After completing this section, we'll be able to draw a map with the MapView using our own data. First, let's have a look at the data and the important objects we'll use.

Map Suite Android "Quickstart Sample"

The first step in creating our “Quickstart sample” application is to set references to the “ThinkGeo.MapSuite”, “ThinkGeo.MapSuite.Android” and “ThinkGeo.MapSuite.Shapes” namespaces at the very top of our code, since we'll use many classes within them. Add the references like this:

using ThinkGeo.MapSuite;
using ThinkGeo.MapSuite.Android;
using ThinkGeo.MapSuite.Shapes;

Display World Map

Now the project is ready, Map Suite Runtime license is required for running and debugging your product. Please open the Product Center, then generate your license. For more details, please refer to (http://wiki.thinkgeo.com/wiki/map_suite_runtime_license_guide_for_mobile).

Now, Let's add a base overlay to display the world map witch called “WorldStreetsAndImageryOverlay”.

protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    SetContentView(Resource.Layout.Main);

    // Get MapView From Activity's View.
    MapView mapView = FindViewById<MapView>(Resource.Id.MapView);

    // Set the Map Unit to DecimalDegrees, the Shapefile’s unit of measure.
    mapView.MapUnit = GeographyUnit.DecimalDegree;

    // Create a WorldStreetsAndImageryOverlay.
    WorldStreetsAndImageryOverlay worldStreetsAndImageryOverlay = new WorldStreetsAndImageryOverlay();

    // Add a WorldStreetsAndImageryOverlay .
    mapView.Overlays.Add("WorldStreetsAndImageryOverlay", worldStreetsAndImageryOverlay);

    // Set a proper extent for the map. The extent is the geographical area you want it to display.
    mapView.CurrentExtent = new RectangleShape(-134, 70, -56, 7);
}

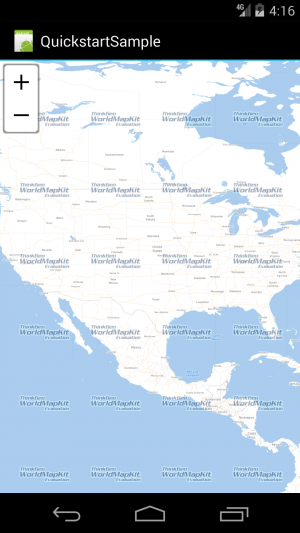

If we compile and run what we have now, our map should look like the one below. (see Figure 5).


Figure 5. A sample map of Europe.

Display Countries On Map

Now let's look at a code sample to bring this concept to fruition. We'll look at ShapeFiles relating to the entire world. In our example, we have one such ShapeFile:

  • Worldwide country borders (cntry02.shp)

(NOTE: The data used here can be found in the attached sample above at “\Assets\AppData” folder. The data files' build action should be “AndroidAssets”.)

Our next step is to define and add our layers. All of the following code can be placed in the “OnCreate” method of the MainActivity.cs. So our MapView can load and render the data, we can add logic to check the data to avoid coping it every time.

protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    SetContentView(Resource.Layout.Main);

    // Copy the required ShapeFiles to Device.
    string targetDirectory = (@"/mnt/sdcard/Android.Sample/GetStarted/");
    CopySampleData(targetDirectory);

    MapView mapView = FindViewById<MapView>(Resource.Id.MapView);
    mapView.MapUnit = GeographyUnit.DecimalDegree;

    // Create a WorldStreetsAndImageryOverlay.
    WorldStreetsAndImageryOverlay worldStreetsAndImageryOverlay = new WorldStreetsAndImageryOverlay();

    // Add a WorldStreetsAndImageryOverlay .
    mapView.Overlays.Add("WorldStreetsAndImageryOverlay", worldStreetsAndImageryOverlay);

    // We create a new Layer and pass the path to a Shapefile into its constructor.
    ShapeFileFeatureLayer worldLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "cntry02.shp"));

    // Set the worldLayer with a preset Style, as AreaStyles.Country1 has a YellowGreen background and black border, our worldLayer will have the same render style.
    worldLayer.ZoomLevelSet.ZoomLevel01.DefaultAreaStyle = AreaStyles.Country1;

    // This setting will apply from ZoomLevel01 to ZoomLevel20, which means the map will be rendered with the same style no matter how far we zoom in or out.
    worldLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    // We need to create a LayerOverlayer to add the world layer.
    LayerOverlay overlay = new LayerOverlay();
    overlay.Opacity = 0.8;
    overlay.Layers.Add(worldLayer);

    mapView.Overlays.Add("cntry02", overlay);

    mapView.CurrentExtent = new RectangleShape(-134, 70, -56, 7);
}

If we compile and run what we have now, our map should look like the one below. (see Figure 4).


Figure 4. A sample map of Europe.

So what has occurred here? We have created a layer and added it to the map and the map has rendered according to its default style parameters. Also, we have used ZoomLevel to display the map the way that we want.

NOTE: It is important that the “MapUnit” property of a Map object be set using the “GeographyUnit” enumeration. This is because the coordinates stored in a ShapeFile can be in DecimalDegrees (a format of latitude and longitude), feet, meters, or another unit system. Our map has no way to know what the ShapeFile's unit of measurement is until we set it. This information is normally found somewhere in the ShapeFile's documentation (also referred to as its metadata), or within its supplemental data file, as discussed in the section on ShapeFiles. It may also come as a separate .txt, .xml, or .html file that begins with the same file name as the main ShapeFile.

With the code above, you can both display a map and navigate it. You can pan by touch on the device and move finger around; zoom in/out by pinch on the screen with two fingers; double tap to zoom in to the next zoom level. Very powerful for just couple lines of code, isn’t it?

That was an easy start! Now, let's add second ShapeFile to the sample, so we'll have a total of two layers:

  1. World country borders (“cntry02.shp”)
  2. World capitals (“capital.shp”)
protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    SetContentView(Resource.Layout.Main);

    string targetDirectory = (@"/mnt/sdcard/Android.Sample/GetStarted/");
    CopySampleData(targetDirectory);

    MapView mapView = FindViewById<MapView>(Resource.Id.MapView);
    mapView.MapUnit = GeographyUnit.DecimalDegree;

    // Create a WorldStreetsAndImageryOverlay.
    WorldStreetsAndImageryOverlay worldStreetsAndImageryOverlay = new WorldStreetsAndImageryOverlay();

    // Add a WorldStreetsAndImageryOverlay .
    mapView.Overlays.Add("WorldStreetsAndImageryOverlay", worldStreetsAndImageryOverlay);

    ShapeFileFeatureLayer worldLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "cntry02.shp"));
    worldLayer.ZoomLevelSet.ZoomLevel01.DefaultAreaStyle = AreaStyles.Country1;
    worldLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    // Similarly, we use the presetPointStyle for cities.
    ShapeFileFeatureLayer capitalLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "capital.shp"));

    // These settings will apply from ZoomLevel01 to ZoomLevel20, which means city symbols will be rendered in the same style, no matter how far we zoom in or out.
    capitalLayer.ZoomLevelSet.ZoomLevel01.DefaultPointStyle = PointStyles.Capital3;

    // We need to add both of the new layers to the Map's Static Overlay.
    capitalLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    // We need to create a LayerOverlayer to add the world layer.
    LayerOverlay overlay = new LayerOverlay();
    overlay.Opacity = 0.8;
    overlay.Layers.Add(worldLayer);
    overlay.Layers.Add(capitalLayer);

    mapView.Overlays.Add("cntry02", overlay);

    mapView.CurrentExtent = new RectangleShape(-134, 70, -56, 7);
}

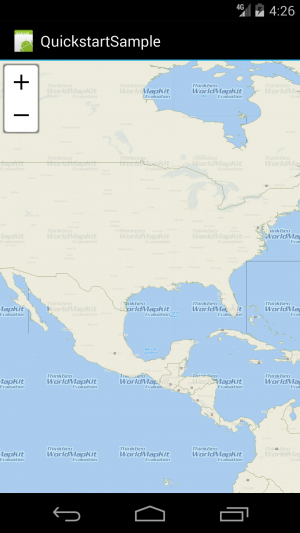

And the result is as follows (Figure 5):


Figure 5. A map of Europe with the additional borders and capitals layers displayed.

How to Use TextStyle

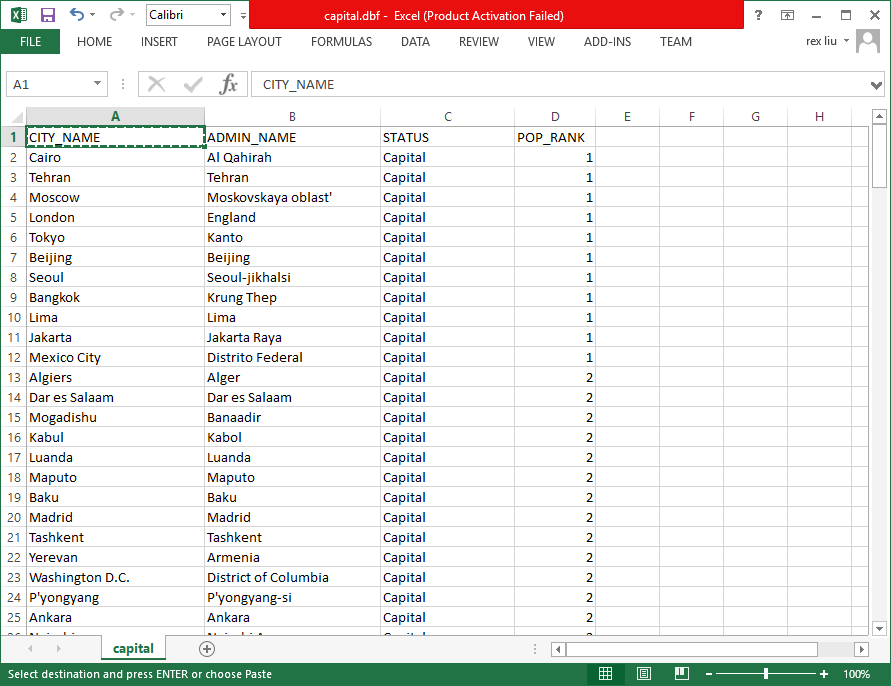

A TextStyle ​is used to label items on map. As every ShapeFile ​has a relative .dbf file that includes descriptions for every record, the most common way to use TextStyles is for labeling. For example, Capital ShapeFile'​s corresponding .dbf file contains the field “​CITY_NAME”​. We can use this field to label the cities on our map.

Map Suite includes several built-in TextStyles to help us quickly apply attractive city labels. We can simply pick the TextStyle we like and use it.

protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    SetContentView(Resource.Layout.Main);

    string targetDirectory = (@"/mnt/sdcard/Android.Sample/GetStarted/");
    CopySampleData(targetDirectory);

    MapView mapView = FindViewById<MapView>(Resource.Id.MapView);
    mapView.MapUnit = GeographyUnit.DecimalDegree;

    WorldStreetsAndImageryOverlay worldStreetsAndImageryOverlay = new WorldStreetsAndImageryOverlay();
    mapView.Overlays.Add("WorldStreetsAndImageryOverlay", worldStreetsAndImageryOverlay);

    ShapeFileFeatureLayer worldLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "cntry02.shp"));
    worldLayer.ZoomLevelSet.ZoomLevel01.DefaultAreaStyle = AreaStyles.Country1;
    worldLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    ShapeFileFeatureLayer capitalLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "capital.shp"));
    capitalLayer.ZoomLevelSet.ZoomLevel01.DefaultPointStyle = PointStyles.Capital3;
    capitalLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    // We create a new Layer for labeling the capitals.
    ShapeFileFeatureLayer capitalLabelLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "capital.shp"));
    // We use the preset TextStyle. Here we pass in the “CITY_NAME”, the name of the field containing the values we want to label the map with.
    capitalLabelLayer.ZoomLevelSet.ZoomLevel01.DefaultTextStyle = TextStyles.Capital3("CITY_NAME");
    capitalLabelLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    LayerOverlay overlay = new LayerOverlay();
    overlay.Opacity = 0.8;
    overlay.Layers.Add(worldLayer);
    overlay.Layers.Add(capitalLayer);
    // Add the label layer to LayerOverlay.
    overlay.Layers.Add(capitalLabelLayer);

    mapView.Overlays.Add("cntry02", overlay);

    mapView.CurrentExtent = new RectangleShape(-134, 70, -56, 7);
}

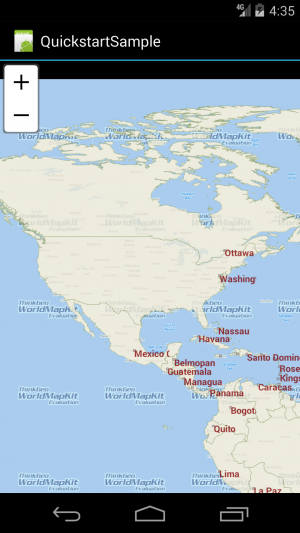

The result is as follows (Figure 6):


Figure 6. Europe map with TextStyle applied.

Now that we know how to render text and symbols, let's create customized Styles and TextStyles. We'll also specify different ranges of ZoomLevels, and apply varying customized Styles and TextStyles to the same layer at different ZoomLevel ranges.

protected override void OnCreate(Bundle bundle)
{
    base.OnCreate(bundle);
    SetContentView(Resource.Layout.Main);

    string targetDirectory = (@"/mnt/sdcard/Android.Sample/GetStarted/");
    CopySampleData(targetDirectory);

    MapView mapView = FindViewById<MapView>(Resource.Id.MapView);
    mapView.MapUnit = GeographyUnit.DecimalDegree;

    WorldStreetsAndImageryOverlay worldStreetsAndImageryOverlay = new WorldStreetsAndImageryOverlay();
    mapView.Overlays.Add("WorldStreetsAndImageryOverlay", worldStreetsAndImageryOverlay);

    ShapeFileFeatureLayer worldLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "cntry02.shp"));
    worldLayer.ZoomLevelSet.ZoomLevel01.DefaultAreaStyle = AreaStyles.Country1;
    worldLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    ShapeFileFeatureLayer capitalLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "capital.shp"));
    // We can customize our own Style. Here we pass in a color and size.
    capitalLayer.ZoomLevelSet.ZoomLevel01.DefaultPointStyle = PointStyles.CreateSimpleCircleStyle(GeoColor.StandardColors.White, 7, GeoColor.StandardColors.Brown);
    // The Style we set here is available from ZoomLevel01 to ZoomLevel05. That means if we zoom in a bit more, it will no longer be visible.
    capitalLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level05;

    capitalLayer.ZoomLevelSet.ZoomLevel06.DefaultPointStyle = PointStyles.Capital3;
    // The Style we set here is available from ZoomLevel06 to ZoomLevel20. That means if we zoom out a bit more, it will no longer be visible.
    capitalLayer.ZoomLevelSet.ZoomLevel06.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    ShapeFileFeatureLayer capitalLabelLayer = new ShapeFileFeatureLayer(Path.Combine(targetDirectory, "capital.shp"));
    // We can customize our own TextStyle. Here we pass in the font, size, style and color.
    capitalLabelLayer.ZoomLevelSet.ZoomLevel01.DefaultTextStyle = TextStyles.CreateSimpleTextStyle("CITY_NAME", "Arial", 8, DrawingFontStyles.Italic, GeoColor.StandardColors.Black, 3, 3);
    // The TextStyle we set here is available from ZoomLevel01 to ZoomLevel05.
    capitalLabelLayer.ZoomLevelSet.ZoomLevel01.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level05;

    capitalLabelLayer.ZoomLevelSet.ZoomLevel06.DefaultTextStyle = TextStyles.Capital3("CITY_NAME");
    // The TextStyle we set here is available from ZoomLevel06 to ZoomLevel20.
    capitalLabelLayer.ZoomLevelSet.ZoomLevel06.ApplyUntilZoomLevel = ApplyUntilZoomLevel.Level20;

    LayerOverlay overlay = new LayerOverlay();
    overlay.Opacity = 0.8;
    overlay.Layers.Add(worldLayer);
    overlay.Layers.Add(capitalLayer);
    // Add the label layer to LayerOverlay.
    overlay.Layers.Add(capitalLabelLayer);

    mapView.Overlays.Add("cntry02", overlay);

    mapView.CurrentExtent = new RectangleShape(-134, 70, -56, 7);
}

Can you imagine what the map will look like now? Below is the result. At first it looks like Figure 7, then like Figure 8 as you zoom in further.


Figure 7. A map of Europe with two ZoomLevels, before zooming in.


Figure 8. The same map with two ZoomLevels, after zooming in.

Summary

You now know the basics of using the Map Suite Map control and can start adding this functionality to your own applications. Let's recap what we've learned about the object relationships and how the pieces of Map Suite work together:

  1. It is of the utmost importance that the units (feet, meters, decimal degrees, etc.) be set properly for the Map control, based on the requirements of your data.
  2. Shapefiles provide the data used by a Map control to render a map.
  3. A Map is the basic control that contains all the other objects used to indicate how the map should be rendered.
  4. A Map has one-to-many Layers. A Layer correlates one-to-one with a Shapefile (.shp).
  5. A Layer can have one-to-many ZoomLevels. ZoomLevels help to define ranges (upper and lower scales) of when a Layer should be shown or hidden.
map_suite_mobile_for_android_quick_start_guide.txt · Last modified: 2017/03/21 05:54 by tgwikiupdate
